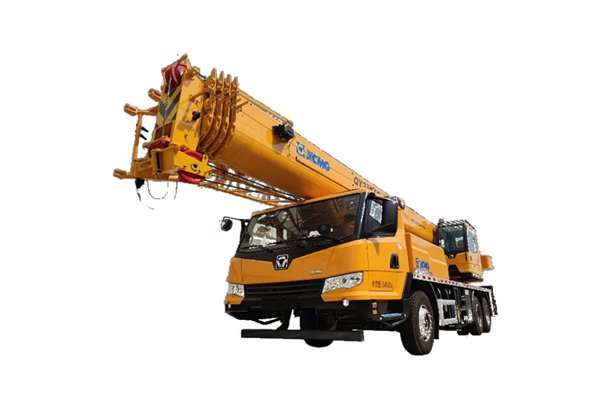

A truck crane combines a truck chassis with a telescopic boom and a hoisting system, and understanding how these relate to each other is useful for anyone specifying parts. This article covers the main components, how the machine works, and which parts determine service life.
\nMain components of a truck crane
\nThe carrier provides the driving platform and the outriggers that stabilise the machine during lifting. Outriggers are the component most often replaced after ground damage, and their seals and hydraulic cylinders are frequent wear items.
\nThe superstructure carries the slewing mechanism, the operator cab, the telescopic boom and the hoist. The slewing reducer and the slew bearing transfer the entire upper structure load, which makes them the most safety-critical structural components on the machine.
\nThe hoist is a separate lifting unit with its own rope, drum and brake. Hoist brake failure is the single most serious failure mode on any crane, and the rope and brake components are subject to defined replacement intervals rather than being replaced on condition alone.
\nWhich parts wear first
\nThree categories of part wear significantly faster than the rest.
\nHydraulic components. Seals, O-rings and hydraulic hoses degrade with age and with contamination. Filter condition determines how quickly the rest of the system degrades, which is why oil and fuel filters are the cheapest reliability measure available.
\nElectrical and electronic components. Contacts corrode, connectors loosen and insulation degrades. These parts often fail without warning rather than gradually, so preventive replacement is harder here than for mechanical parts.
\nStructural wear parts. On undercarriage-equipped machines, track chains, rollers and idlers wear according to ground condition and working hours, and are predictable enough to plan for.
\nPlanning parts supply
\nBecause wear is predictable, parts for the high-wear categories are worth holding rather than sourcing on demand, particularly where a machine is working in a remote location and lead time is significant. Filters and common hydraulic items are the usual starting point for such a stockholding decision.
\nTOP RUN supplies truck crane parts for XCMG QY25K, QY50K and QY70K series, including outrigger seal kits, hoist components, slewing reducers and filtration items, with more than 12,500 SKUs held in Qingdao. Send the machine model and serial number, and we will confirm the correct parts for your specific machine.
