Road grading is one of the most precision-dependent jobs in heavy construction. A bulldozer can move bulk material and an excavator can dig aggressively, but a motor grader is expected to finish a surface to exact tolerances so drainage, pavement quality, and traffic safety all work as intended. That precision is measured in millimeters. Once critical xcmg motor grader parts begin to wear, that accuracy disappears quickly. A worn motor grader blade, a leaking articulation cylinder, or a slipping tandem drive does not just reduce performance. It makes fine grading impossible. A wavy or inconsistent road surface is often the first sign that key grader assemblies are approaching the end of their practical service life.

At Top Run Machinery, we have spent two decades supporting contractors in Africa, Southeast Asia, and Latin America as a practical xcmg grader spare parts supplier. When a GR215 or GR230 goes down, the stoppage is not isolated to one machine. It delays the paving and compaction crews behind it and pushes project costs upward immediately. That is why knowing how to diagnose faults and source the right xcmg motor grader parts from China matters so much.

What Makes Motor Grader Parts Different from Other Heavy Equipment

To a casual observer, a motor grader may look like a tractor with a long frame and a blade underneath the center section. Mechanically, it is much more demanding than that. The part systems inside an XCMG grader operate under a combination of constant abrasion, multi-axis hydraulic movement, and highly controlled traction that is very different from loaders or bulldozers.

First, the motor grader blade and cutting edge are in continuous, pressurized contact with the ground. Unlike a loader bucket that cycles through digging and lifting, the grader blade keeps shaving material continuously. That creates sustained friction, heat, and abrasive wear.

Second, the machine depends on precise multi-axis control. The blade must lift, tilt, side-shift, and rotate through a full circle. That means the articulation cylinder, the circle drive motor, and the moldboard assembly all need tight tolerances. Even a small amount of slack in these components can cause chatter, poor blade holding force, and a rough finished grade.

Third, traction delivery is unique. The rear axle group uses a tandem drive arrangement that must transmit power smoothly while the front axle and articulation geometry constantly change the machine's direction and working angle. When you buy from an xcmg grader spare parts supplier, you need someone who understands those tolerances rather than someone who only matches descriptions loosely.

GR215 and GR230 Key Specifications

The XCMG GR series is a mainstay of export road-construction fleets. The GR215 and GR230 are especially common because they offer a strong balance between horsepower, blade width, and maneuverability for highway, municipal, and quarry access-road work.

It is important to confirm whether your machine is a standard GR215 or a later reinforced GR2153 or GR215A-type variation. Many xcmg motor grader parts can cross over, but assemblies such as tandem drive chains and certain seal kits for the articulation cylinder often change across production generations.

Critical Wear Parts: What Fails First

Across 20 years of supply work, the same high-risk groups appear repeatedly in field failures. Monitoring these xcmg motor grader parts closely is the most effective way to move from reactive repair to planned maintenance.

Motor Grader Blade and Cutting Edge

The cutting edge is the main sacrificial wear item on the grader. It bolts to the bottom of the moldboard and takes the direct abrasion load from the road surface. If you let the cutting edge wear too far, the moldboard itself starts to wear, and that repair is far more expensive. For a GR215 blade replacement, always verify the bolt-hole spacing before ordering because XCMG patterns do not always match Western-brand edges exactly.

Circle Drive Motor

The circle drive motor rotates the blade and sits in one of the machine's dirtiest operating zones. When the internal gears or engagement surfaces wear, the blade begins creeping under load and cannot hold the angle selected by the operator. This is especially common in graders working in heavy clay, broken rock, or mixed aggregate conditions.

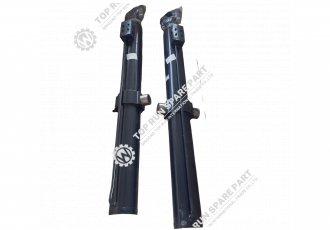

Articulation Cylinder

The articulation cylinder allows the rear frame to steer independently from the front section, which is essential for bank work, curved sections, and tight maneuvering. Because it is always adjusting frame position, its seals see constant movement and contamination risk. Once this cylinder begins leaking, hydraulic response becomes slow and the machine starts feeling vague or unstable in fine work.

Tandem Drive Assembly

The tandem drive is the rear drive box that houses the chains and gearing for the four rear wheels. It needs clean oil and correct lubrication levels at all times. Clunking noises or jerky rear-wheel drive often point to chain stretch or sprocket wear inside the tandem housing. Checking tandem oil every 250 hours is a basic discipline, not an optional extra.

Moldboard and Scarifier

The moldboard is the curved plate that carries the blade and allows the machine to shape the road. Over time, the side-shift slides and bushings wear, creating movement that directly affects finish quality. The scarifier teeth at the front or rear of the machine also bend or break in hard-ground applications. Keeping spare shanks and tips on hand is good practice on every ripping job.

GR215 Blade Replacement: How to Choose the Right Cutting Edge

When it is time for a GR215 blade replacement, the cheapest steel is rarely the cheapest option over the life of the machine. In grader maintenance, metallurgy and blade geometry matter directly to uptime and cost per hour.

For soft dirt and sandy work, standard carbon-steel edges can be acceptable. Once the machine moves into abrasive gravel or mixed aggregate, Boron steel becomes the better choice. Boron-alloy blades can be heat treated to a much higher hardness, often around HB450 to HB500, and their service life can be several times longer than standard steel in severe conditions.

Thickness is equally important. A GR215 edge is commonly supplied in 16mm or 19mm options, while 25mm heavy-duty versions make more sense for hard quarry access roads or rock-heavy pioneer work. Blade profile also matters. Curved edges roll material better for final trimming, while flatter edges hold up better in rougher, more aggressive maintenance work.

We supply grader blades matched to the correct bolt-hole pattern for GR215 and GR230 machines, which avoids the all-too-common field problem of receiving a blade that requires drilling, torch cutting, or welding before it can be installed.

1. Carbon Steel vs. Boron Steel: Use standard steel for soft conditions and Boron steel when abrasive wear is the main threat.
2. Thickness and Width: Match thickness to ground severity and verify the total edge length against your existing blade.
3. Flat vs. Curved Profile: Choose curved edges for finer finish work and flatter profiles for heavy maintenance or pioneering tasks.

How to Source XCMG Grader Spare Parts from China

Buying xcmg motor grader parts directly from China can reduce cost substantially compared with local dealer pricing, but only when the process is controlled correctly.

• Verify Part Numbers: Do not buy by description alone. Always provide the XCMG part number and the machine serial number.
• Choose the Right Quality Tier: Genuine, OEM, and aftermarket all exist. For high-risk items such as a circle drive motor, genuine or OEM remains the safer choice.
• Use Consolidated Shipping: Heavy items such as moldboards and tandem housings are poor candidates for urgent air freight. Combine blades, seal kits, and service items into planned sea shipments where possible.

If you need broader machine support, you can review our XCMG parts page or send the machine details directly through our contact page for a fitment check before ordering.
