The XCMG QY75K remains a widely used 75-ton truck crane on construction sites across Asia and Africa. As these machines age, the demand for genuine and compatible electronic components has grown significantly. One component that has recently drawn attention from maintenance crews is the controller IFLEXC3. This device is not a generic computer box. It is a purpose-built control unit that speaks the specific language of the QY75K’s hydraulic and electronic systems.
To understand its role, we need to look at where it sits and what it does.
1. Installation Location and Physical Interface

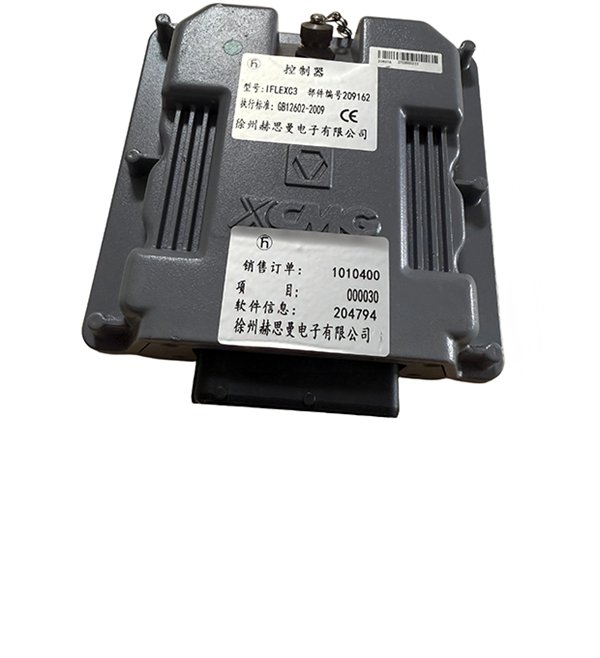

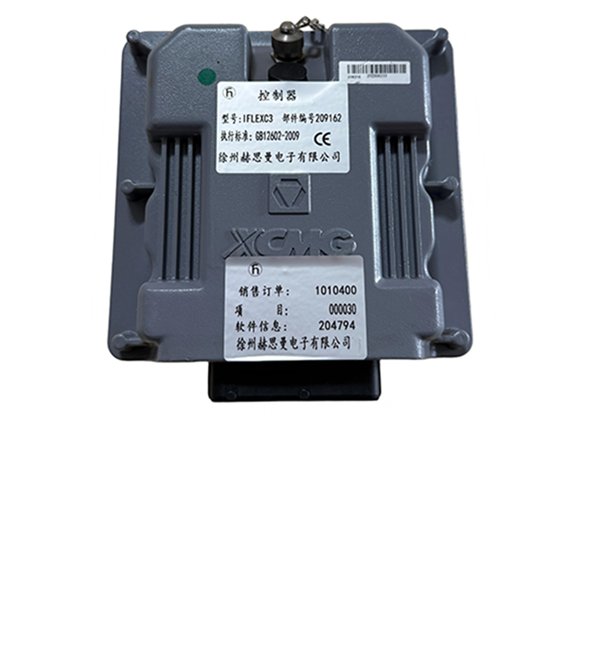

The IFLEXC3 controller is mounted inside the main electrical cabinet behind the crane’s operator cab. It is secured with four M6 bolts onto a vibration-damping bracket. The housing is made of die-cast aluminum with an IP65 sealing rating, which protects it against dust and water jets commonly encountered during concrete pouring or dusty earthmoving work.
On its front face, there are three multi-pin connectors: two 26-pin and one 18-pin. These connectors are keyed differently to prevent incorrect insertion. The wiring harnesses running from these ports go directly to the boom angle sensor, the length encoder, the load moment indicator, and the main pump proportional valve. A small LED indicator on the side panel glows steady green when the unit is powered and the CAN bus communication is active. If it turns red or blinks, the operator knows immediately that a communication fault exists.
2. Core Functions in Daily Operation
The IFLEXC3 executes three primary tasks every second during crane operation.
First, it processes analog signals from the boom angle and length sensors. These signals are converted into digital data and compared against the crane’s rated load chart stored in its internal memory. If the operator extends the boom beyond the safe radius for the current counterweight configuration, the controller sends a limiting signal to the hydraulic pump, reducing flow and preventing further dangerous extension.
Second, the unit manages the automatic outrigger leveling sequence. When the operator presses the “auto-level” button, the IFLEXC3 reads inputs from four tilt sensors placed at each corner of the chassis. It then modulates the solenoid valves for each outrigger cylinder, opening and closing them in milliseconds until the chassis is within 0.5 degrees of level. This sequence typically takes 8 to 12 seconds under normal ground conditions.
Third, the controller governs the telescopic boom synchronization. The QY75K has a three-section boom that extends simultaneously. The IFLEXC3 monitors the extension speed of each section via built-in encoders and adjusts the flow dividers accordingly. Without this regulation, the boom sections would extend at uneven rates, causing binding and premature wear on the slide pads.
3. Common Faults and Practical Repair Experience
From field reports gathered from service workshops in Southeast Asia, the most frequent failure on the IFLEXC3 is not internal circuit burnout but connector corrosion. Because the cabinet is not hermetically sealed, moisture can enter through the cable glands over time. Repair technicians often find green oxide on pins 12 and 13 of the 26-pin connector, which are responsible for the boom angle feedback loop. Cleaning these pins with contact cleaner and applying dielectric grease usually restores function without replacing the entire unit.
The second most common issue is a corrupted calibration parameter after a dead battery. When the crane’s main battery is disconnected or runs flat, the IFLEXC3 may lose its zero-point reference for the length encoder. Re-calibration requires a handheld programming tool and a known 10-meter test length. The procedure is documented in XCMG service bulletin SB-2021-04. It takes about 25 minutes and must be performed on level ground with the boom fully retracted.
4. Maintenance Schedule and Replacement Advice
XCMG does not specify a fixed replacement interval for the IFLEXC3. Instead, the recommended practice is to check its diagnostic log every 500 operating hours using the crane’s dashboard display. The log stores the last 50 fault events with timestamps. If the log shows repeated “CAN timeout” errors on the same sensor channel, the controller is likely developing an internal voltage regulator issue. In such cases, replacement is more cost-effective than board-level repair, since the internal PCB is potted with epoxy and individual component replacement is nearly impossible.
When ordering a replacement, buyers must confirm the firmware version. The IFLEXC3 for the QY75K comes in two variants: V2.3 for machines produced before 2016 and V3.0 for later units. The physical appearance is identical, but the communication protocol differs. Installing the wrong version will result in the crane failing to complete its start-up self-test, with the display showing error code E-17.
For most operators, the IFLEXC3 is a reliable workhorse. It rarely fails catastrophically. However, its sensitivity to voltage spikes and moisture means that proper maintenance of the cabinet seal and battery health is just as important as the controller itself. As one workshop manager in Ho Chi Minh City put it: “We replace one or two units a year. Most of the time, we just clean the plugs and reload the parameters. It’s a tough box, but it’s not invincible.”
