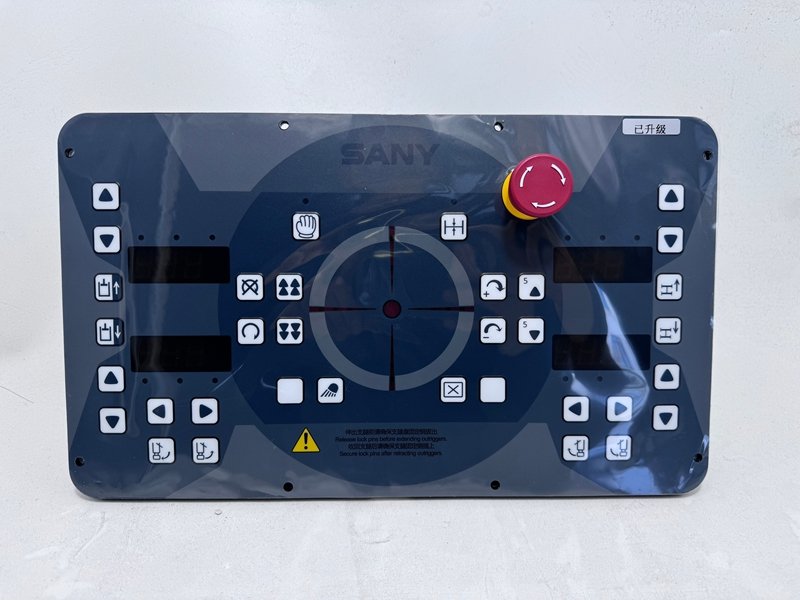

The SANY outrigger control panel, part number 60333029 (also marked GH-SY002-A), is a dedicated control interface for the outrigger system on SANY cranes . It puts precise stabilization control at the operator's fingertips, ensuring the crane sets up safely and levels correctly on any job site.
1. Where It Mounts and What It Fits
This panel is designed for the SANY SAC2200T all-terrain crane . It weighs 2.5 kg and measures 340×200×102 mm . The panel typically mounts on the crane chassis or superstructure, within easy reach of the operator.
2. Core Functions
The panel handles several critical tasks :
Outrigger extension and retraction – Operators can extend or retract all legs at once for speed, or control each leg individually for precision setup.
One-key auto-leveling – The panel reads the machine's tilt angle and automatically adjusts each outrigger to bring the crane to level. This is especially useful on rough or uneven terrain.
Status indication – LED lights show the current state of each outrigger leg, giving the operator clear visual feedback.
Engine control – Some versions include ignition and shutoff functions, letting the operator start or stop the engine directly from the panel.
Fault detection – The panel detects system faults and displays error codes, helping operators pinpoint issues without guesswork.
3. Safety Protection
Safety is built into the panel design. An emergency stop button is located on the panel – pressing it immediately stops all outrigger movement and cuts power, preventing accidents in critical moments . The panel also monitors chassis tilt angle through sensors; if the angle goes outside the safe range, it triggers an alarm or automatically adjusts the legs.
4. Communication and Integration
The panel communicates with the main control system via CAN bus . This allows real-time data exchange and synchronized operation between multiple control stations on the machine.
5. Maintenance and Service
Routine maintenance is straightforward – keep the panel clean and check wiring connections during regular inspections. If the panel becomes unresponsive or buttons fail, replace the entire unit and verify that the replacement matches the correct voltage and pin configuration for the crane model.
6. Value for Operators
For crane operators, this panel means faster setup, more accurate leveling, and better safety on the job. The combination of individual leg control and auto-leveling reduces setup time and ensures the crane operates within its stability limits.
