The DC contactor in a crane electrical system is a component that is easy to overlook until it fails, at which point it can stop the machine entirely. This article explains what the MZJ-400A-006 contactor does, how to confirm the correct replacement, and what to check before concluding that the contactor itself has failed.

What the DC contactor does

In a crane control system, the DC contactor switches the main power supply to the control circuits. When a contactor fails to close, the control system receives no supply and the crane will not power up or operate. When a contactor closes but contacts are pitted or welded, the symptom differs: the fault appears as a control malfunction, an unexpected movement, or a failure to hold a load.

Because these two failure modes present differently, the contactor is not always the component at fault when the symptom points to it.

How to confirm the correct replacement

Replacement contactors are supplied with a part number, and the number should be confirmed against the machine parts catalogue rather than inferred from the contactor physical size. Contactors of similar dimension can differ in contact rating and coil voltage, and a mismatch in coil voltage will prevent the contactor from operating correctly even when the physical fit is correct.

Where the machine has been modified during service life, or where the original contactor has been replaced previously with a non-original unit, the machine serial number should be used for identification.

Checks before concluding the contactor has failed

Three checks frequently identify a fault that is not the contactor.

Inspect the control circuit wiring and connectors. Corroded terminals and loose connections produce symptoms that closely resemble a failed contactor.

Check the coil supply voltage. Low voltage, or voltage that collapses when the contactor engages, indicates a supply-side problem rather than a contactor fault.

Check for mechanical binding. If the contactor armature does not move freely when operated manually, the mechanical assembly is at fault.

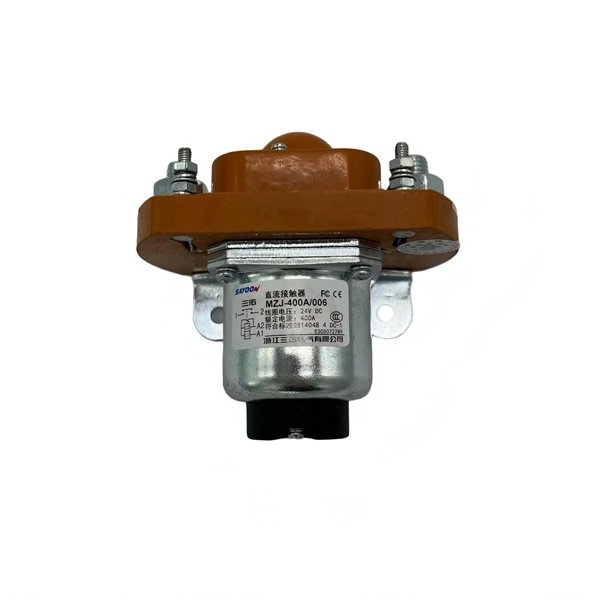

TOP RUN supplies the MZJ-400A-006 and related XCMG crane electrical components. Send the machine model, serial number or a photograph of the old contactor label, and we will confirm the correct part before dispatch.
