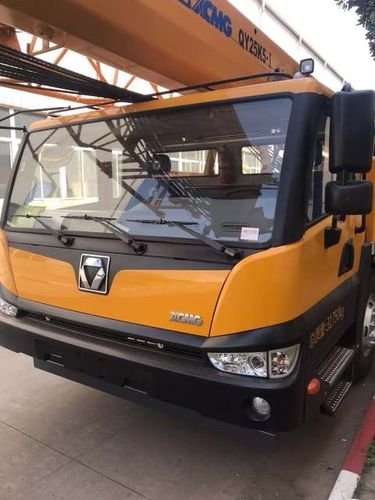

A truck crane cabin is one of the most frequently replaced assemblies on the machine, because it is damaged in ways that do not affect structural components: by a falling object, by a collision during manoeuvring, or by an ingress that leaves the interior unusable while the machine itself remains operational.
\nCabin structure and mounting
\nThe cabin is a welded frame carrying a roof, doors, glazing and the operator seat, and it is mounted to the superstructure on a support structure that transfers load into the slewing platform. Because it is a separate assembly, it can often be replaced without work on the crane structure itself, which reduces repair time considerably.
\nMounting bolts and their locking arrangements are worth inspecting whenever the cabin is removed. Vibration over time loosens fasteners that are not torque-locked, and this presents as a rattlesome cab that leads to fatigue complaints.
\nElectrical systems within the cab
\nThe wiring harness inside a cab flexes with door opening and closing and with the operator's movement. Harnesses are therefore among the components most likely to fail in an otherwise sound cab, and a harness fault often presents as an intermittent control problem rather than as a complete loss of function.
\nDisplay units, joysticks and control panels are also common replacement items. Where a machine has been modified, or where a previous replacement was not an original unit, compatibility should be confirmed before fitting.
\nCommon replacement situations
\nCabin replacement becomes necessary where the frame is distorted, where door latches and hinges no longer hold the door closed, or where water ingress cannot be resolved. In these situations, replacing the complete assembly is generally more economical than repairing individual components.
\nWhen ordering a cabin, the machine model and serial range are required to identify the correct configuration. Modifications made to the original cab, such as added air conditioning or altered seating, will not be reflected in the standard configuration and should be stated where relevant.
\nTOP RUN supplies cab assemblies and related cab components for XCMG truck cranes, with more than 12,500 SKUs held in Qingdao. Send the machine model, serial number or a photograph of the existing cabin, and we will confirm the correct configuration before dispatch.
