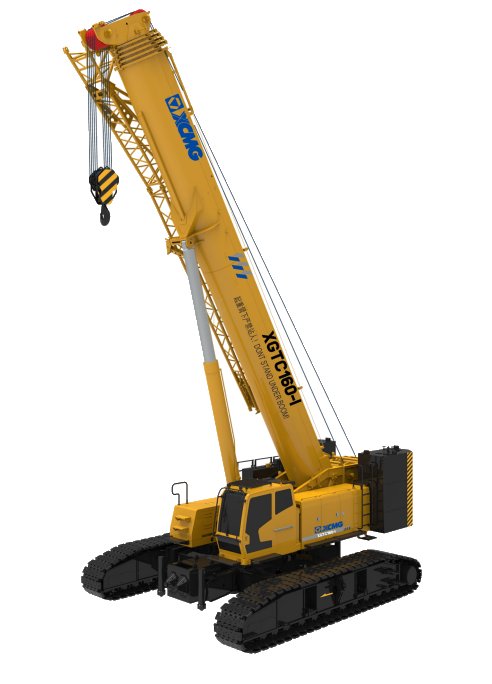

The travel system on a crawler crane is the assembly that allows the machine to move, and it carries the full weight of the vehicle. Because of that load, wear in this assembly determines service life more than any other single group on the machine.
\nTravel system layout
\nA crawler travel system consists of a track frame, sprockets, idlers, rollers, track chains and the travel reduction units that drive the sprockets. The track chains connect the sprockets and idlers and form the running surface that the machine actually moves on.
\nLoad is transferred from the track frame through the rollers to the track chains, and from the track chains to the sprockets at each end. Every component in that path carries the machine's full weight, which is why wear accelerates once the tension between sprocket and idler is no longer correct.
\nComponents subject to wear
\nSprocket teeth wear through contact with the chain pins. Wear here changes the engagement geometry, which reduces drive efficiency and accelerates chain wear.
\nIdler wheels and rollers wear along their running surface. These are comparatively low-cost items, and replacing them at the correct interval is considerably cheaper than allowing wear to affect the chain.
\nTrack chain wear manifests as elongation under load. A visibly slack chain in the straight section, before the machine has travelled a significant distance, indicates elongation rather than normal slack, and means the chain should be measured and replaced.
\nTrack tension determines how quickly much of this wear occurs. A machine operated with incorrect tension wears both the chain and the sprocket considerably faster.
\nPlanning replacement
\nTrack wear is predictable enough to plan for, and replacement is normally scheduled by measuring rather than by calendar. For machines in heavy ground work, measurement at shorter intervals is warranted.
\nTOP RUN supplies undercarriage components for XCMG crawler cranes, including track chains, rollers, idlers, sprockets and travel reduction parts. Send the machine model and serial number, and we will confirm the correct parts and their interchangeability for your specific machine.
