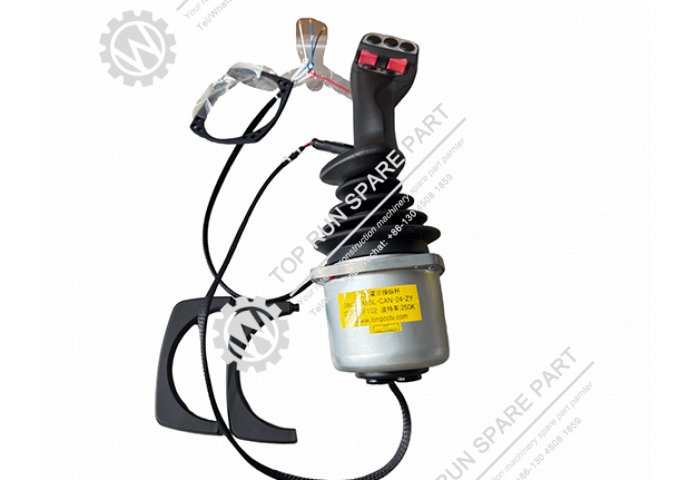

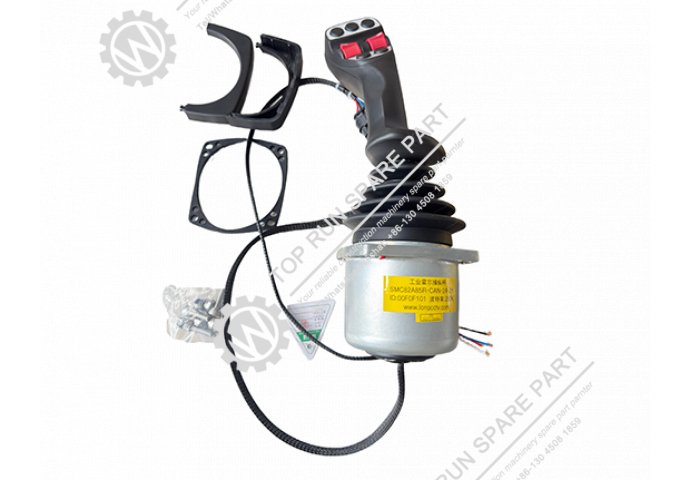

The SMC82AB5R-CAN-24-YQ14 (right-hand) and SMC82AB5L-CAN-24-YQ14 (left-hand) are multi-functional proportional joystick handles designed for construction and material handling equipment. They use CAN bus communication for digital signal transmission.
1. Installation Location
These handles are mounted on the operator's left and right side consoles within the equipment cab, typically on the armrests. The right-hand unit (SMC82AB5R-CAN-24-YQ14) and left-hand unit (SMC82AB5L-CAN-24-YQ14) are installed as a mirrored pair, positioned within easy reach for ergonomic operation.
2. Function

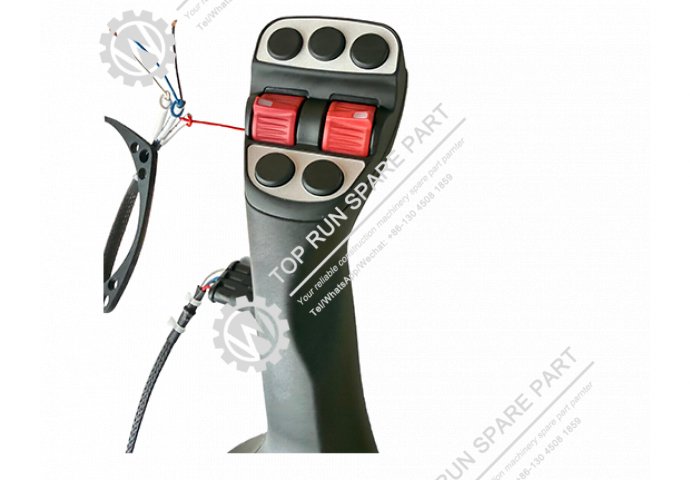

These handles are proportional joysticks, meaning the output signal corresponds to the deflection angle, enabling precise variable-speed control of hydraulic actuators. The CAN bus communication allows digital signal transmission to the machine's ECU with built-in diagnostic capabilities. Each handle typically includes integrated grip actuators such as thumb rockers, rollers, or push buttons for auxiliary functions (e.g., hydraulic thumb or grapple control). The base may also feature a front-mounted trigger or side-mounted rocker for functions like horn, travel control, or differential lock. The "24" in the model indicates 24V DC operating voltage.
3. Maintenance and Service
Regular inspection includes checking cable connections for damage, verifying the 24V power supply, and ensuring smooth joystick movement without sticking or excessive play. The CAN bus system allows the ECU to detect faults such as open circuits or signal drift. If the handle becomes unresponsive or shows erratic output, first check the wiring harness and connectors before assuming internal failure. The unit is a sealed assembly and contains no user-serviceable parts; if a fault is confirmed, complete replacement is recommended.
4. Important Notes
Always disconnect power before removing or installing these handles. Verify the part numbers match the original specification (R for right, L for left) as they are side-specific and not interchangeable. Refer to the machine's service manual for the correct CAN bus pin-out configuration and any required calibration procedures after installation.
