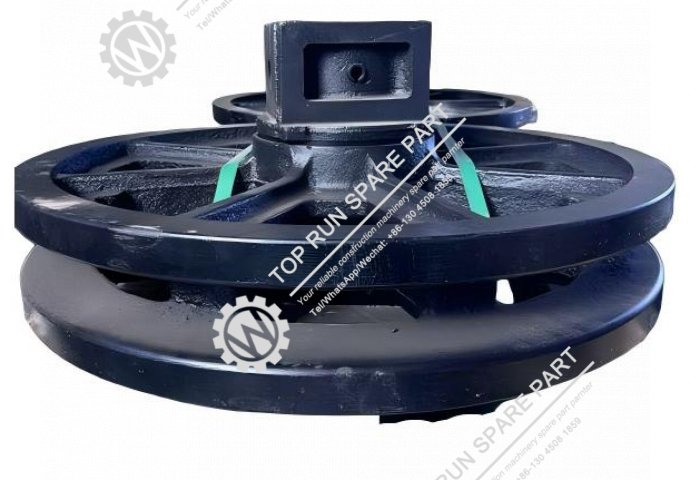

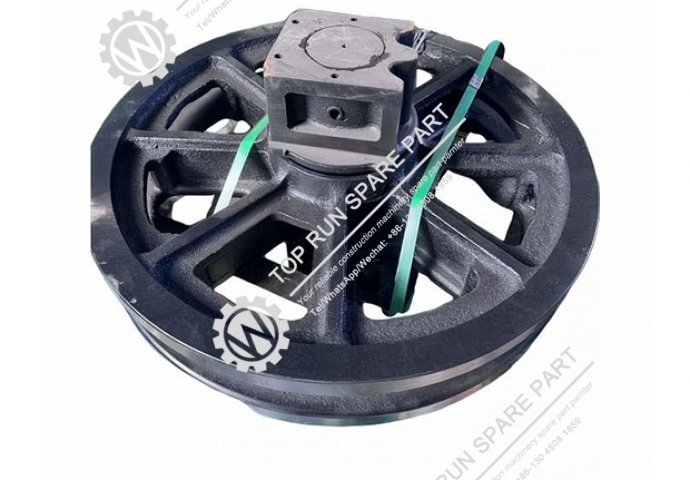

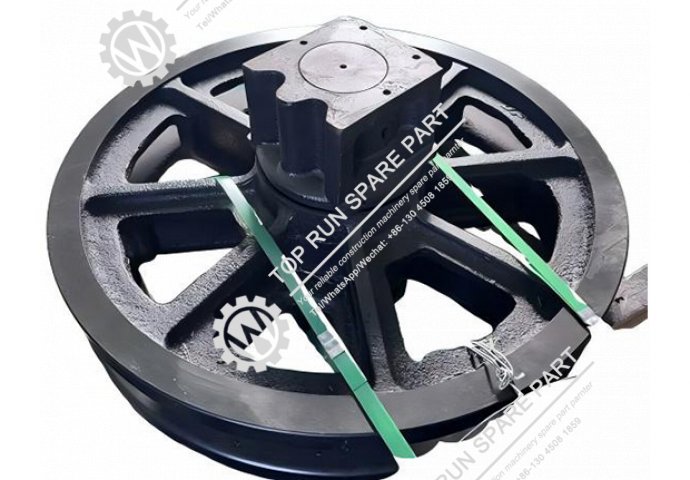

The XCMG QUY50 front idler assembly guides the crawler chain around the forward end of the frame. Match the installed frame and front idler reference and establish which parts of the support or tensioning assembly are included in the offer. This listing identifies an assembly by function. Confirm the exact supplied reference against the crawler frame and documented installation before ordering.
Part identification| Catalogue reference | Use original assembly label or serial-specific drawing |
|---|
| Evidence to confirm fit | Crawler frame, front idler position and support or tensioning drawing |
|---|
Locate the front idler and the assembly that supports it
Show the front end of the crawler frame in a side photograph, mark the idler and include the frame identity and crane serial. On the parts drawing, indicate where the guide wheel, its supporting components and the separately identified tensioning arrangement sit. A photo of a removed wheel may establish its general shape. The drawing is needed to confirm how the offered assembly belongs in the crawler and which parts should be ordered together for the workshop’s approved service scope.
Where the machine has a changed crawler frame, give the supplier both the original chassis record and the information for the fitted frame. Include any legible old assembly reference and tell the seller where it was found. If the old idler is unavailable, a serial-specific drawing and a current view of the installation can help the supplier identify what it can confirm. Keep any open question about placement or the tensioning interface visible instead of treating a generic QUY50 part description as the final application.
Is the order for the wheel or an assembly with supports?
Ask the technician to specify the parts identified for replacement and the pieces that will remain in service. A complete front idler request may refer to more than the wheel shown in a listing. Ask the seller for an itemized description and the relevant drawing, identifying any shaft, guide or other pieces that actually ship. If the service order includes a separately listed component of the tensioning arrangement, order it by its own verified reference and confirm the appropriate handling and service requirements with qualified personnel.
Use the approved drawing and service records when comparing dimensions and mating features. If the old part has been removed through the authorized process, photograph it from more than one side with a label identifying the crane and job. Identify which features the reviewer has requested, such as the wheel profile, width and support or guiding interfaces. Note where wear may affect a measurement. Ask the seller to confirm what information applies to the actual offered assembly so the technical team can compare consistent references.
How this product differs from the other QUY50 roller listings
A QUY50 lower track roller supports the lower chain run. A QUY50 top carrier roller supports the returning chain above the frame. The front idler is a different assembly with a separate position and scope. For a crawler overhaul, mark all the required positions and put each one on a separate order line with a verified reference. An assembly name and a clear marked location can prevent an order from being described only as “QUY50 wheels”.
A prior repair report may describe track behaviour without naming the replacement selected by the service team. Ask the qualified reviewer to define the required service and provide the approved item list. If the seller can quote a wheel alone and a larger assembly, compare the contents under the exact scope the workshop has requested. Keep the accepted decision with the actual crawler frame and job. An old order from another QUY50 does not identify the installed configuration of this machine.
Prepare the service site for a front idler delivery
When the seller confirms the exact offer, collect the shipment and handling information associated with it and identify the receiving location. Record whether supporting pieces are included in the same package or travel separately. Give the service site a copy of the accepted item list and the assembly drawing that establishes the offered configuration. This allows its qualified personnel to check readiness before a scheduled crane shutdown, especially if the front idler shares a shipment with unrelated track components.
Check the package identification, visible supplied assembly and associated items at receipt using the site’s approved process. Keep the carton information if the fitted interface or offered marking differs from the approved quotation. A clear discrepancy record identifies the crane, frame and actual piece received so the supplier can address the relevant line. Route installation, handling and tensioning work to qualified persons using the applicable equipment procedures, and retain the approved scope with the part.
For an idler held as a reserve, label the stock with the approved crawler frame and assembly reference. Keep a copy of the drawing and include which support or accessory components were supplied. If the crane receives a replacement frame, record the new identification with its stock application so a later buyer can see which approved unit belongs to the updated arrangement. A stock correction may be needed if two outwardly similar front assemblies were previously stored under the same description.
Keep photographs of the approach to the support and tensioning assembly in the job pack if the service team can obtain them safely. The supplier can use this evidence to identify which mounting features the shop actually needs. If the first quote covers only a wheel, request a separate assembly scope where the technician has identified a larger replacement. Compare delivery and inspection requirements for the actual offered pieces. Record the item as pending if its support interface still awaits confirmation.
When two crews share the crawler service, give both the accepted drawing and package list. The mechanical team should be able to see which supplied parts relate to the idler and which components remain on independent orders for the track assembly.
Does the QUY50 model identify one complete front idler assembly?
Use the serial, crawler frame identification, actual idler marking and the correct view of the support or tensioning arrangement. Ask the supplier to identify specifically what its offer covers.
Can I order a front idler wheel by itself?
Ask the workshop for the approved scope and the appropriate part callout. Confirm with the seller whether the offered number is the wheel alone or an assembled unit and list related pieces separately if required.
How should a buyer handle a missing old label?
Provide the machine and frame identification, marked assembly drawing and clear context photographs. Keep the match provisional until the supplier documents its offered item and the service reviewer confirms it.
