Product Introduction:

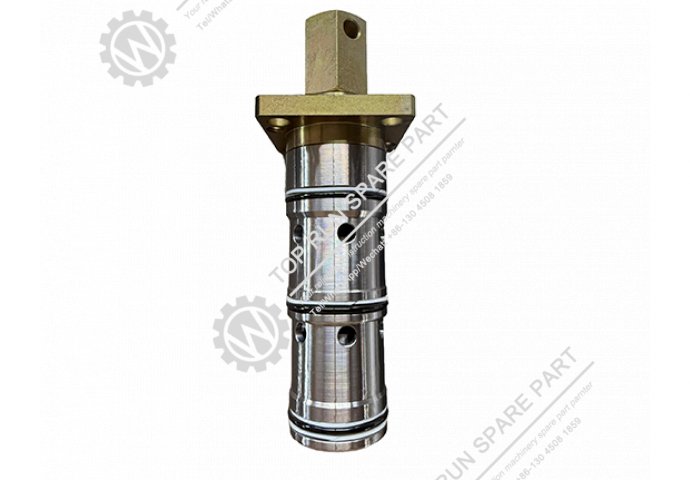

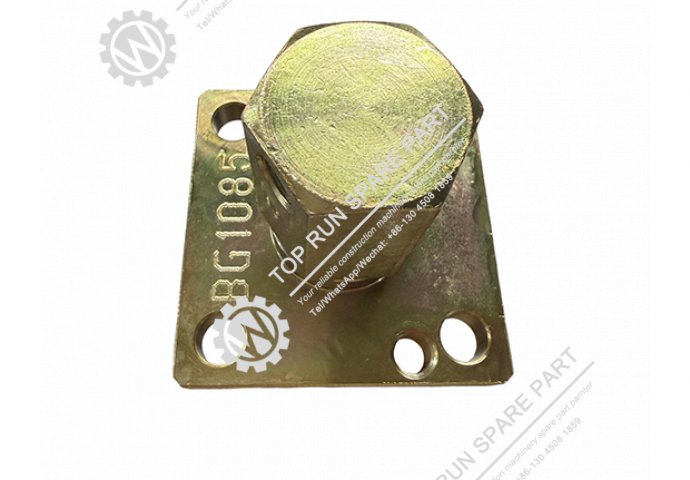

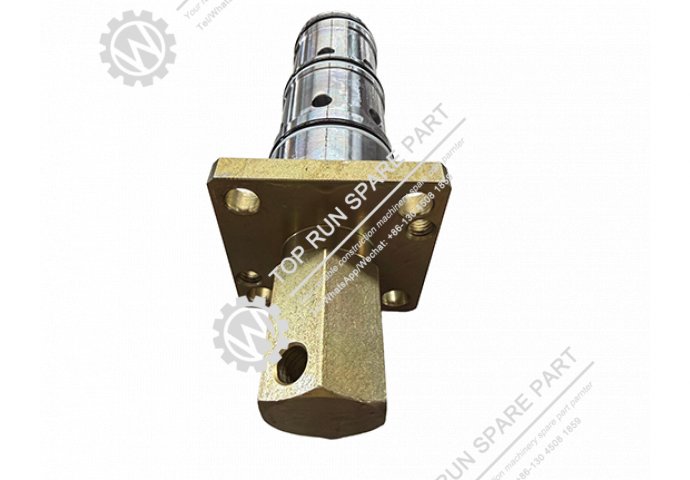

The 803008348 is a balance valve used in the hydraulic system of the XCMG QY50K truck crane. It is a critical safety and control component that prevents uncontrolled movement of the boom due to gravity or load.

1. Installation Location
This valve is installed in the hydraulic circuit of the crane's boom system. Based on the QY50K parts catalog, balance valves are used in the luffing (elevating), telescoping, and hoisting circuits . The valve is typically mounted directly on or near the hydraulic cylinder it controls, often at the base of the cylinder .

2. Function
The balance valve serves two primary functions. First, it acts as a load-holding device, locking the hydraulic cylinder in position when the control valve is in neutral to prevent the boom from drifting or dropping due to load or gravity . Second, it controls the speed of lowering, ensuring the boom descends smoothly and steadily by creating a controlled back-pressure in the return oil line . Without a properly functioning balance valve, the boom could fall rapidly and uncontrollably, posing a serious safety risk.

3. Maintenance and Service
The balance valve is a precision hydraulic component and is not user-serviceable internally. Common issues include internal spring breakage, valve spool wear, or blockage in the control oil port . If the boom drops too quickly, becomes unstable during descent, or fails to hold position, the balance valve should be inspected. Internal repairs require specialized knowledge and clean conditions; replacing the complete valve assembly is typically recommended if a fault is confirmed.

4. Important Notes
Always verify the part number 803008348 matches the original component specification for the specific QY50K crane model before installation. Ensure the hydraulic system is fully depressurized before servicing. After replacement, test the boom functions through their full range of motion to confirm proper load-holding and controlled lowering performance.
