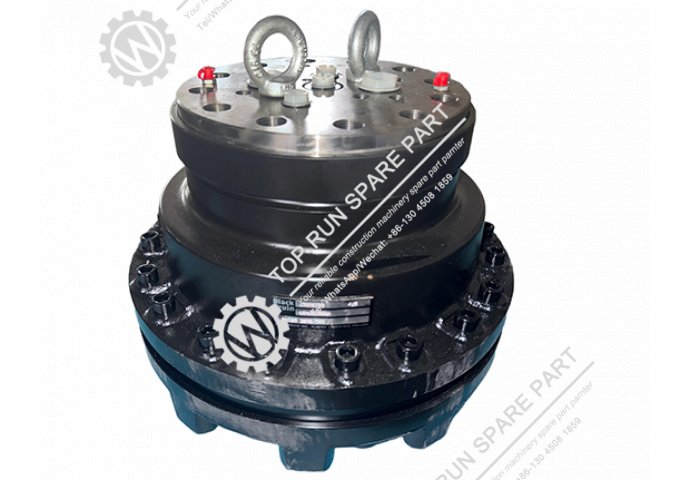

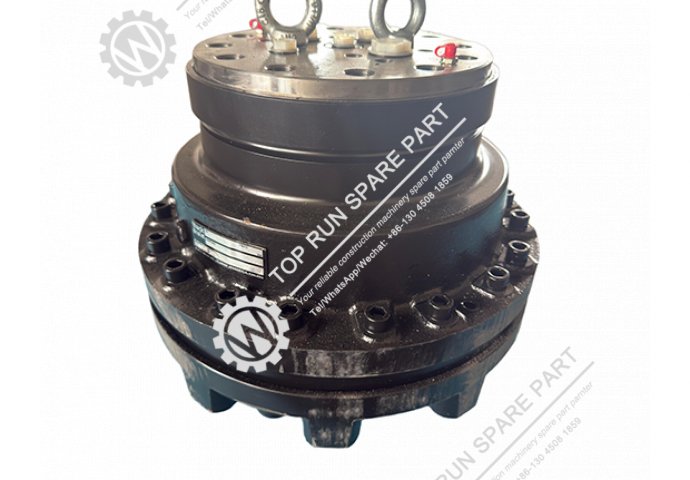

The hydraulic motor with part number 803010458 is a service part designed for use in XCMG motor grader hydraulic systems. Based on available parts catalog information for XCMG GR215A series graders, hydraulic motors are typically used in front-wheel drive systems or attachment drive applications .
1. Installation Location
This motor is typically installed within the grader's hydraulic drive circuit. In XCMG motor graders, similar hydraulic motors are found in the front-wheel drive system, mounted to drive the front wheels . Installation involves connecting hydraulic supply and return lines and securing the motor with mounting bolts. The location is generally accessible from underneath or through service access panels.
2. Function
The motor converts hydraulic fluid flow and pressure into mechanical rotary power. In motor grader applications, hydraulic motors drive auxiliary functions or provide front-wheel assist drive to improve traction in soft ground or slope conditions . The motor operates as part of the grader's closed-centre hydraulic system, with flow controlled by upstream valves to vary output speed and torque as required by the operating condition .
3. Maintenance and Service
When servicing or replacing this motor, depressurise the hydraulic system before disconnecting any lines . Check that mounting bolts are torqued to specification and that all O-ring seals on hydraulic connections are in good condition before reassembly. After installation, bleed air from the hydraulic circuit by running the system at low speed and checking for smooth motor operation. The motor itself contains no user-serviceable internal parts; if internal wear or leakage occurs, the complete unit should be replaced .
4. Important Notes
Verify the part number 803010458 against the original component before installation. Ensure hydraulic fluid is clean and meets the grader manufacturer's specification to prevent premature motor wear. After installation, test the motor through its full operating range before returning the grader to service.
