Product Introduction:
1. Basic Identity

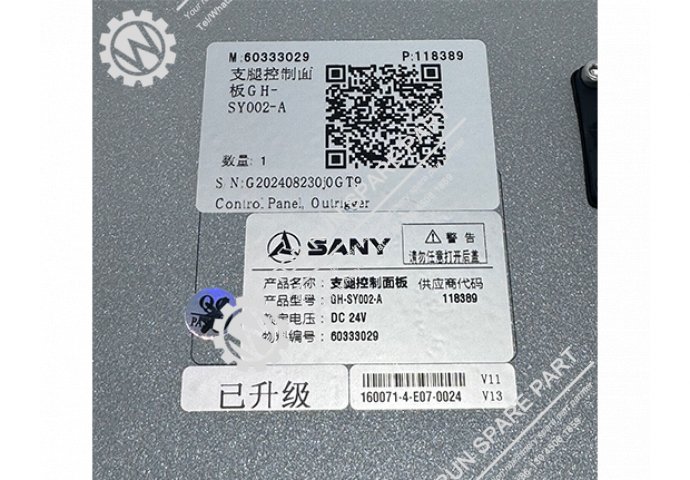

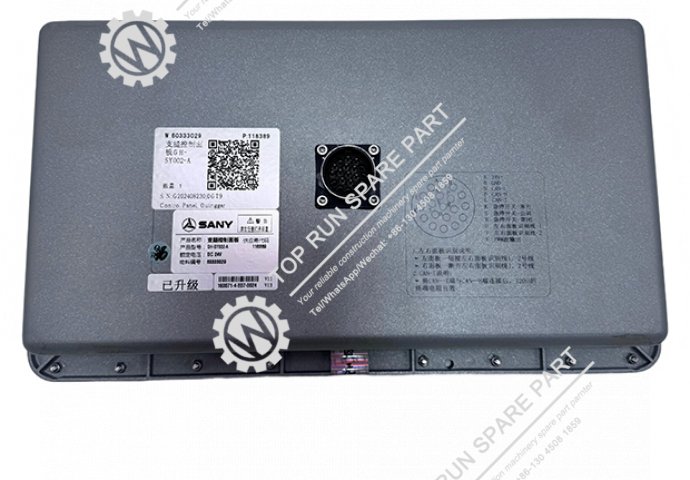

This is a control panel for SANY crane outrigger systems. The part number is 60333029. It also carries the code GH-SY002-A. It fits the SANY SAC2200T crane model. The panel weighs 2.5 kg and measures 340×200×102 mm.
2. Installation Location
The panel mounts on the crane's chassis or superstructure, within reach of the operator. On some cranes, there are multiple control stations located on different sides of the machine for ground-level operation. This allows the operator to control outriggers from the best vantage point.
3. Main Functions

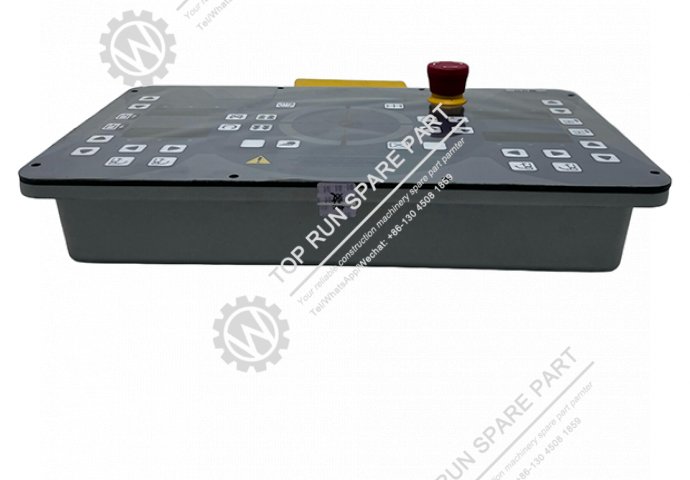

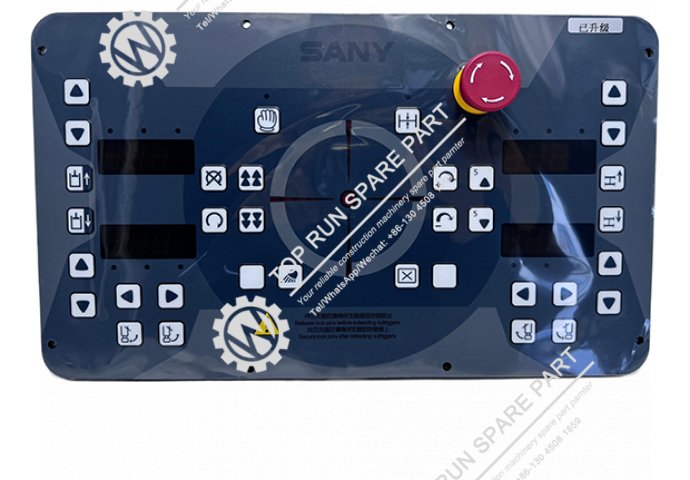

The panel does three core jobs. First, it controls outrigger extension and retraction. Operators can extend or retract all legs at once, or operate each leg individually. Second, it has a one-key auto-leveling function. The system adjusts each outrigger based on the machine's tilt angle and brings the crane to level. Third, it provides safety monitoring. Indicator lights show the status of each leg. An emergency stop button cuts all outrigger movement instantly.
4. Communication and Diagnostics
The panel uses CAN bus to communicate with the main control system. It also has fault detection. If a sensor fails or an outrigger does not reach its position, the panel shows a fault code or warning light. This helps the operator identify problems quickly.
5. Maintenance
Keep the panel clean and free of debris. Check the wiring and connectors during routine inspections. If the panel fails or the keys or buttons become unresponsive, replace the entire unit. Verify that replacement parts match the correct voltage and pin configuration for the crane model.
