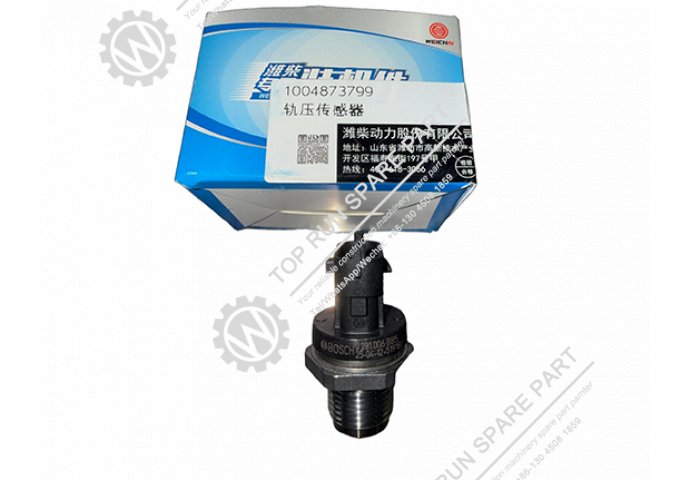

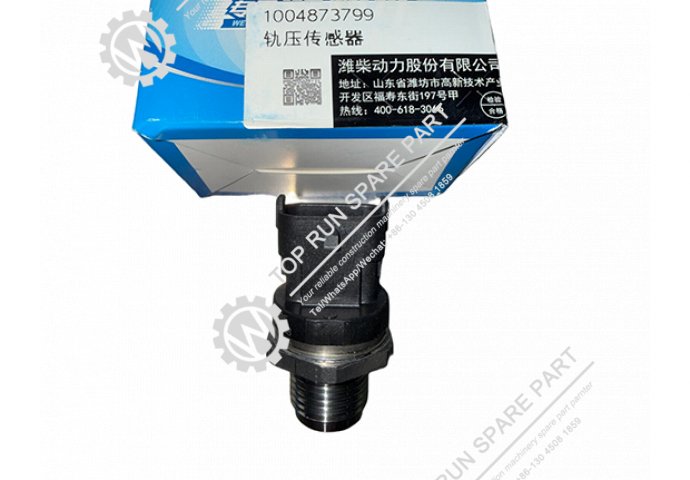

The common-rail pressure sensor (part number 1004873799) is an electronic component used in Weichai diesel engine common-rail fuel systems. It is a key sensor that provides real-time fuel pressure data to the engine control unit (ECU) for precise fuel management.

1. Installation Location
This sensor is installed directly on the common rail pipe (also known as the fuel rail) of the engine. The rail pressure sensor is mounted to monitor the fuel pressure inside the high-pressure accumulator before fuel is distributed to each cylinder's injector.

2. Function
The sensor measures the real-time fuel pressure within the common rail and converts this pressure into a voltage signal that is sent to the ECU. This pressure feedback allows the ECU to precisely control the fuel injection quantity and timing by adjusting the fuel pump and pressure control valve, ensuring optimal combustion and engine performance. The sensor is part of a closed-loop control system that maintains the correct fuel pressure regardless of engine speed changes.

3. Maintenance and Service
According to Weichao WP12 series manuals, if the rail pressure sensor fails or shows erratic readings, it should be checked and replaced. This sensor is an electronic component that is not user-serviceable; if faulty, it must be replaced with an identical unit (1004873799). As the sensor operates under high pressure, the fuel system must be depressurized before removal or installation. After replacement, the engine control system may require diagnostic calibration to ensure correct pressure readings.

4. Important Notes
Always verify the part number 1004873799 matches the original component specification before installation. The sensor is designed for specific Weichai engine applications (including WP12 series and other common-rail models). The rail pressure sensor is a critical safety and performance component—incorrect installation or using non-spec parts can lead to poor engine performance or starting issues.
