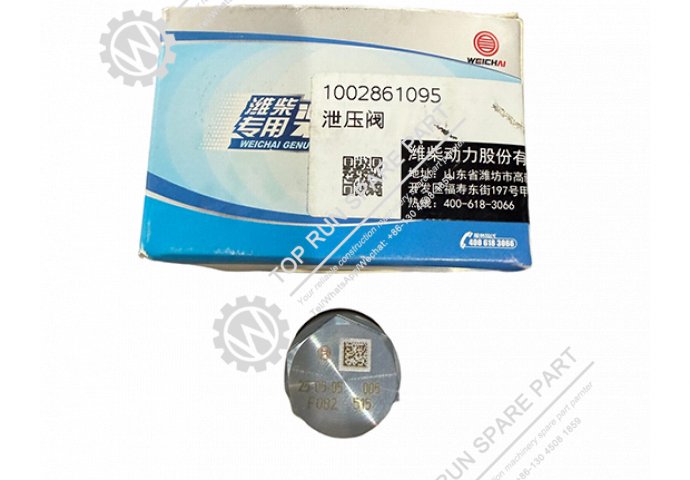

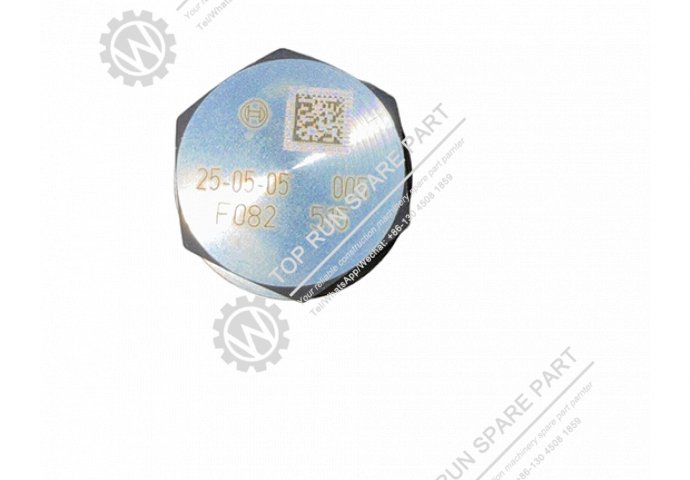

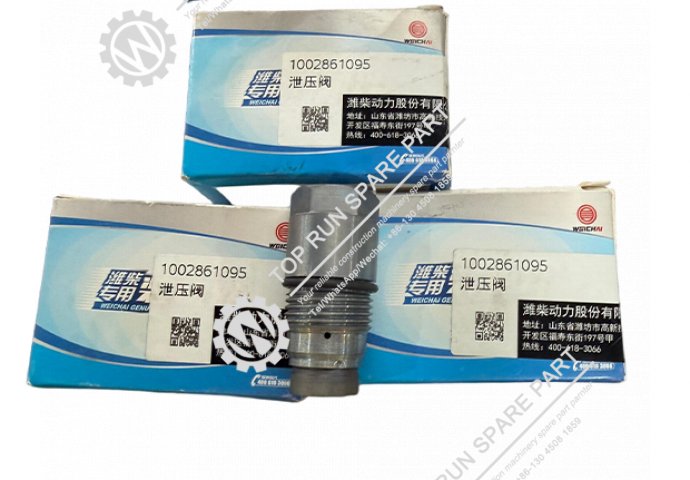

The pressure relief valve (part number 1002861095) is a mechanical component used in Weichai diesel engine lubrication systems . It is designed to limit maximum oil pressure within the engine's main oil passage to prevent damage to bearings and other lubricated components.
1. Installation Location
This valve is installed within the engine lubrication system, typically located at the front or side of the main oil passage, often accessible from the oil pan area after removal . The valve consists of a spring-loaded plunger that opens when oil pressure exceeds a preset limit, allowing excess oil to bypass back to the oil pan or suction side .
2. Function
The pressure relief valve maintains oil pressure within the manufacturer's specified operating range by regulating the flow from the oil pump. When oil pressure is too high (e.g., during cold starts), the valve opens to bypass excess oil and protect engine components from over-pressure damage . It also helps stabilize oil pressure across varying engine speeds and operating conditions.
3. Maintenance and Service
The valve is a precision spring-loaded component and is not typically user-adjustable in modern engines, as factory settings are pre-calibrated . If oil pressure issues occur, diagnosis should follow a systematic approach: first verify oil level, check the oil filter and pickup screen for clogging, and test with a mechanical pressure gauge before adjusting or replacing the valve . Incorrect adjustment can cause serious lubrication problems, including bearing seizure from insufficient pressure or oil line fitting failure from excessive pressure . If the valve is stuck or worn, replacement with an identical 1002861095 unit is recommended.
4. Important Notes
Always verify the part number 1002861095 matches the original component specification for the specific engine model. Do not casually adjust the pressure relief valve without proper tools and pressure gauge verification, as over-adjustment can damage the lubrication system . If oil pressure persists below specification after inspection, the issue may be oil pump wear or excessive bearing clearances rather than the relief valve itself
