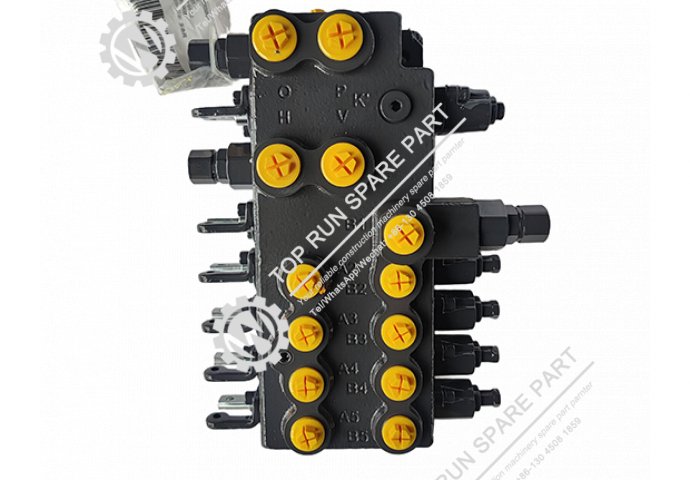

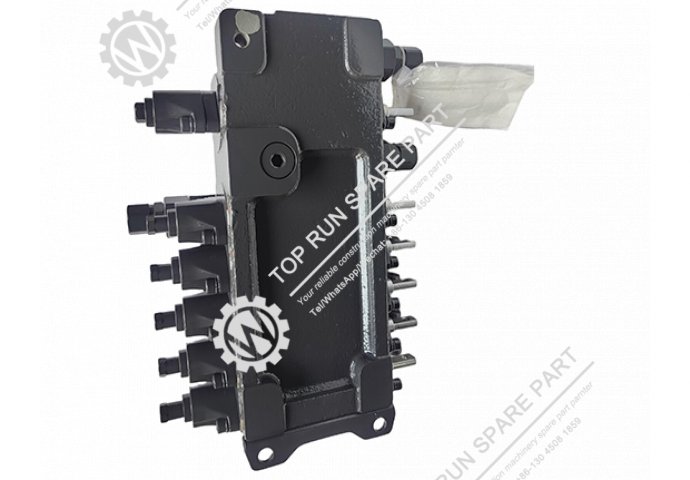

The multiway valve QYZTF-S10E (part number 803000096) is a hydraulic component used in XCMG truck cranes. It is a modular control valve that directs oil flow to different actuators, primarily used for controlling outrigger operations and other hydraulic functions in XCMG crane models.
1. Installation Location
This valve is installed in the crane's hydraulic system, typically positioned on the chassis for the lower control section. It has a compact design with dimensions of approximately 500*300*200 mm and a weight of 20 KG. It is compatible with a wide range of XCMG models, including QY25K, QY50, QY70K-I, and XGC100 series.
2. Function
The multiway valve integrates multiple control functions into a single unit. Its primary functions include:
Direction Control: Shifting the spool position to control the extension, retraction, and luffing of the boom, as well as the lifting and lowering of the hook.
Flow & Pressure Adjustment: Regulating the speed of actuators by adjusting the spool opening, and protecting the system from overpressure via integrated relief valves.
Load Sensing: Providing energy-saving features by distributing flow according to actual load demand.
3. Maintenance and Service
This valve is a critical precision component. If hydraulic functions become sluggish or unresponsive, inspect the valve for contamination or worn seals. The unit is not user-serviceable internally; disassembly for internal repairs should only be performed by qualified hydraulic technicians using proper tools and clean conditions. If faulty, replacing the entire valve assembly is often recommended to ensure reliability.
4. Important Notes
Always relieve hydraulic system pressure before removing or installing this valve. Verify the part number 803000096 and model QYZTF-S10E match the original component specifications for the specific crane model. Use only clean hydraulic fluid meeting manufacturer specifications to protect the valve's precision internal components.
