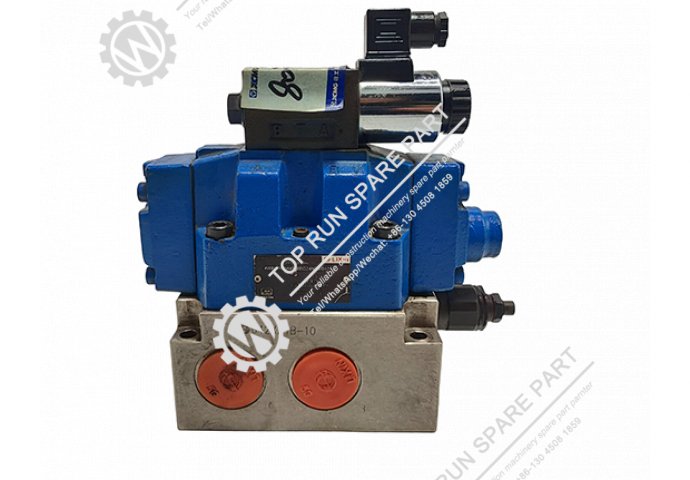

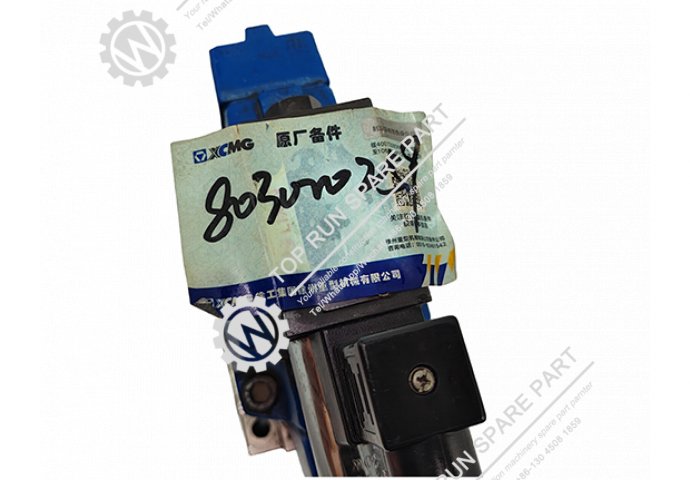

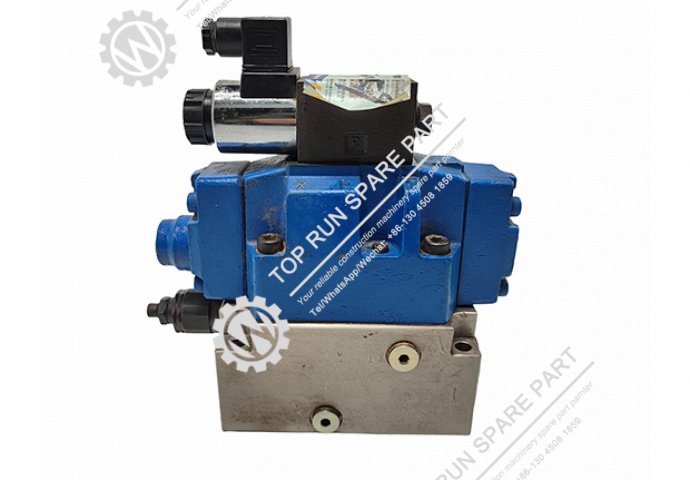

The solenoid valve assembly (part number 80300259) is a hydraulic component used in XCMG 55t crane systems. It is designed to control oil flow direction and is typically applied in hydraulic control circuits for crane operations.
1. Installation Location
This valve is installed within the crane's hydraulic control system, typically in the main control valve block on the upper structure or in the pilot control system on the chassis. The assembly is mounted via standard hydraulic ports and electrical connectors, with the solenoid coil receiving control signals from the crane's electrical system.
2. Function
The solenoid valve assembly controls the flow of hydraulic fluid by opening or closing internal passages when electrically energized. It is used to activate or deactivate specific hydraulic functions, such as pilot pressure supply for main control valves, enabling safe and responsive crane operations.
3. Maintenance and Service
Regular inspection includes checking the solenoid coil and connector for damage, verifying the valve spool moves freely, and ensuring no external leakage at the ports. The assembly is not field-serviceable internally; if the coil or internal spool is worn or damaged, complete replacement with an identical 80300259 unit is recommended. Before removal, depressurize the hydraulic system and disconnect electrical power.
4. Important Notes
Always verify the part number 80300259 matches the original component specification for the specific 55t crane model (e.g., XCT55, QY55K). Confirm the solenoid voltage rating matches the crane's electrical system before installation. After replacement, check all connections for leaks and test the corresponding hydraulic function before returning the crane to full operation.
