Product Introduction:

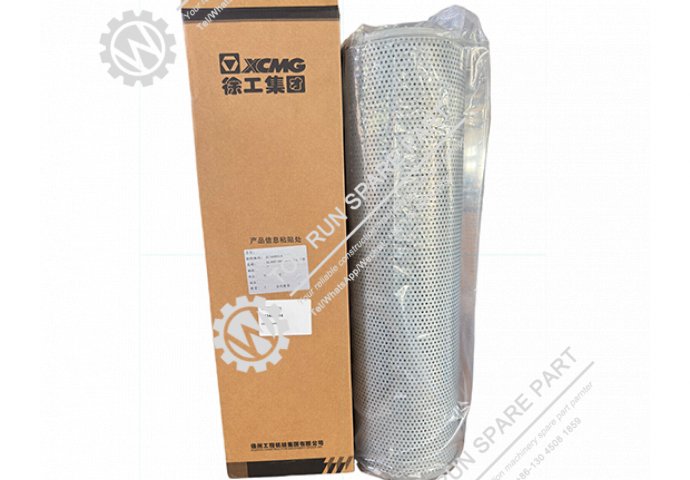

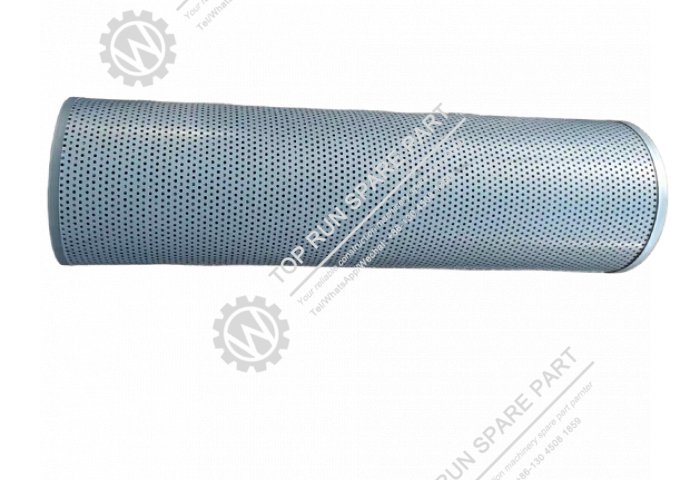

The 813408514 is a return oil filter element used in the hydraulic systems of XCMG construction machinery. It is designed to remove contaminants from hydraulic fluid as it returns to the tank, ensuring system cleanliness and reliability. This part number is used in the company's genuine parts system and is an option for maintaining various machines.
1. Installation Location
This filter is installed in the oil return line of the hydraulic system, typically located at the top of the hydraulic tank or within the return line. It filters the hydraulic oil after it has passed through the system's actuators and valves, before it re-enters the tank. The actual filtration accuracy used in XCMG equipment is rated at 10μ (microns) for return oil filters.
2. Function
The return oil filter traps contaminants and wear particles that are picked up as hydraulic oil circulates through the system. By cleaning the oil before it returns to the tank, it prevents these particles from being circulated again, protecting pumps, valves, and cylinders from abrasive wear and premature failure.
3. Maintenance and Service
This is a standard serviceable component that should be replaced at the intervals recommended by the equipment manufacturer, which are heavily influenced by the operating environment and the machine's condition. Regular inspection and replacement of the return filter are important to prevent clogging that can affect system performance. The filter element is a non-serviceable part and must be replaced with an identical unit if damaged or contaminated.
4. Important Notes
Always verify the part number 813408514 matches the original component specification for the specific XCMG machine model before installation. As a genuine XCMG part, it is designed for correct fit and sealing in the specific filter housing. For situations where an exact replacement is unavailable, alternative high-quality options like the MANN-FILTER range for Chinese brands may be considered. Proper identification using OE numbers is possible with these alternatives. Ensure the hydraulic system is depressurized before servicing the filter.
