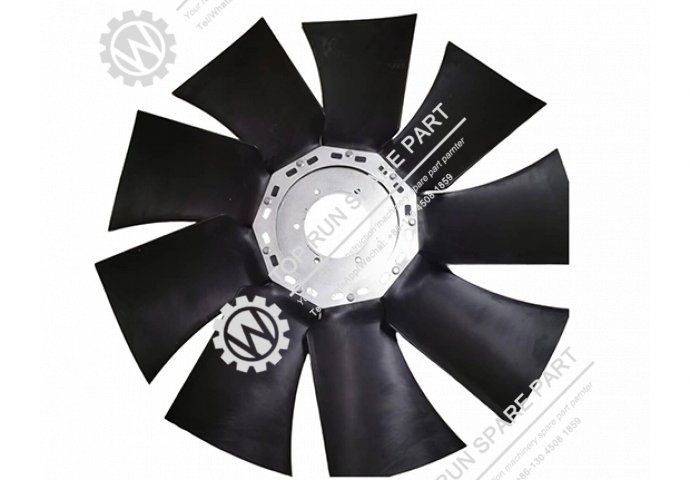

XCMG XE490 Excavator Cooling Fan 8GL09S300-001
Part number 8GL09S300-001 identifies a cooling fan for XCMG XE490 excavator service enquiries. The fan moves air through the cooling package while the machine is operating. Correct blade profile, rotation direction, mounting pattern and clearance are important to cooling performance and safe operation.
This listing is for identification and quotation. XE490 configurations can vary by production batch or previous repair history, so the machine serial number and the marking on the removed fan should be checked before an order is finalized.
Product Details
Part name: Excavator cooling fan
Part number: 8GL09S300-001
Model reference: XCMG XE490 excavator
Verification points: Fan marking, rotation or blade orientation, mounting pattern and machine serial number
When to Inspect the Fan
A fan should be inspected if blades show cracks, chips, deformation or contact marks, or if the cooling area has abnormal vibration or noise. These symptoms do not prove that the fan is the only cause; the drive, hub, guards, mounts and cooling cores should also be checked by qualified service personnel.
Ordering Checklist
Provide a readable photo of the part number, front and rear views of the complete fan, the hub and bolt pattern, and the XCMG machine data plate. State whether the fan is required alone or together with related drive components. Do not rely only on outside diameter because fans with similar dimensions can have different pitch or orientation.
Packing and Installation Notes
The fan should be protected from bending and impact during transport. Before installation, compare the new and old parts side by side and check the surrounding shroud and drive components. Installation should follow the applicable XCMG service procedure, including fastener and clearance checks. Do not attempt to repair a cracked or distorted blade by heating or reshaping it.
Frequently Asked Questions
Does 8GL09S300-001 fit every XE490?
Fitment should still be checked against the machine serial number and original fan because production or service changes may exist.
Can the fan be selected by diameter only?
No. Rotation, blade pitch, hub geometry and mounting pattern also matter. Send photos and the original marking.
What should be inspected with a damaged fan?
Check the hub or drive, shroud clearance, fasteners and signs of contact or vibration so the cause of damage is addressed before the new part is installed.
