Product Introduction:

1. Basic Identity

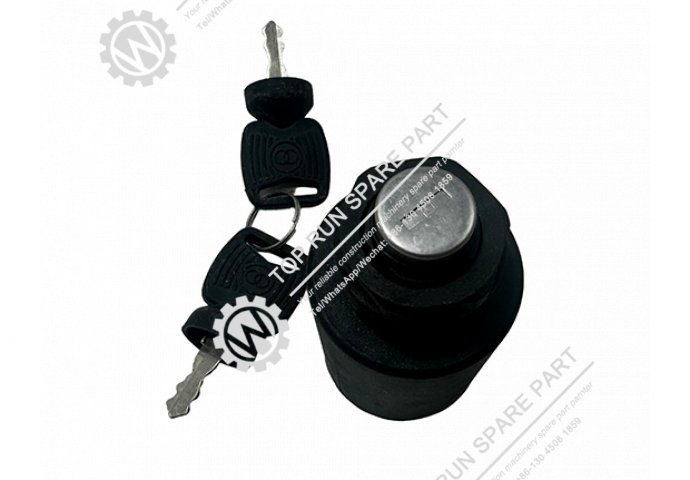

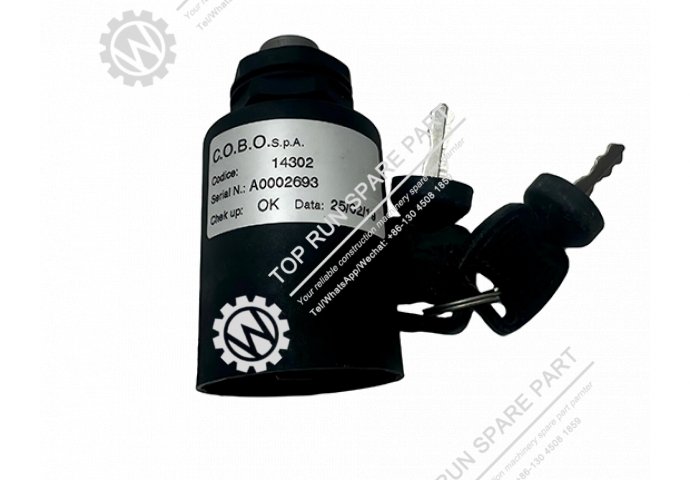

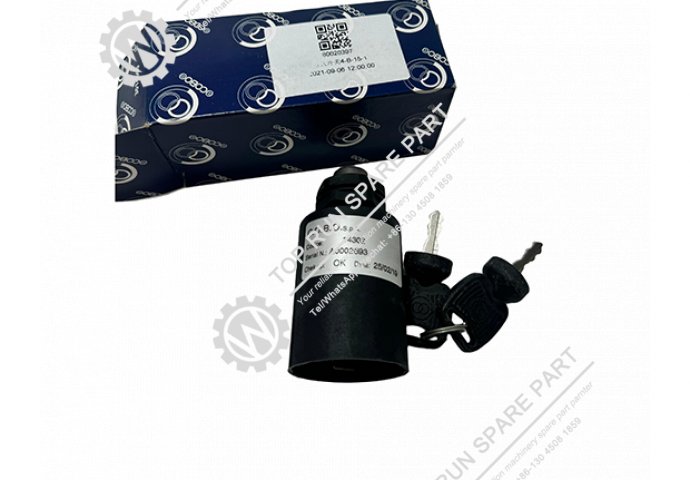

This is a key-operated switch, also called an ignition switch or key switch, designed for XCMG machinery. It is used to turn electrical power on and off in the equipment.

2. Installation Position
The switch is typically installed on the control panel or dashboard of the machine, in a position accessible to the operator. It fits into a standard mounting hole on the panel and is secured with a nut from the back.

3. Function
The switch performs two main jobs. First, it controls the main electrical power to the machine, allowing the operator to start and stop the engine. Second, the key lock provides security, preventing unauthorized use of the equipment. The key can only be removed when the switch is in the "off" position.

4. Construction and Durability
The switch body is made from durable plastics with silver-alloy contacts for reliable electrical connections. It is sealed against dust and moisture on the front face, protecting the internal mechanism in harsh worksite conditions. The switch is rated for a mechanical life of around 30,000 switching cycles.

5. Maintenance and Replacement
This type of switch requires minimal routine maintenance—keep the keyway clean and free of debris. If the switch becomes hard to turn or fails to make electrical contact, it should be replaced as a complete unit with a new set of keys. Use only the correct key to avoid damaging the lock cylinder.
