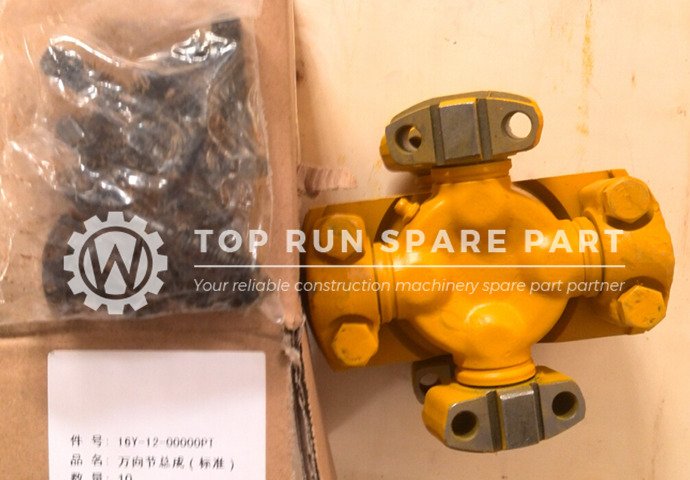

Universal Joint Assy 16Y-12-00000 for Shantui Bulldozer Transmission System
The Universal Joint Assy 16Y-12-00000 is a critical transmission component used in Shantui bulldozers, designed to transmit torque between shafts at varying angles. It ensures smooth power transfer, flexibility in motion, and stable operation of the drivetrain under heavy-duty working conditions.
At Qingdao Top Run International Trade Co.,Ltd., we specialize in supplying high-quality OEM and aftermarket construction machinery spare parts, helping global customers maintain equipment performance and reduce downtime.
Product Overview of Universal Joint Assy 16Y-12-00000
The universal joint assembly is an essential component in the bulldozer transmission system. It connects rotating shafts and allows for angular misalignment, enabling efficient torque transmission even when components are not perfectly aligned.
Part Name: Universal Joint Assembly
Part Number: 16Y-12-00000
Application: Shantui Bulldozer Transmission System
Function: Torque transmission and shaft connection
Condition: New / OEM Standard
Industry: Construction Machinery Spare Parts
Key Features and Advantages
Flexible Transmission: Allows power transmission between non-aligned shafts.
High Strength Design: Built with durable alloy materials for heavy-duty use.
Smooth Operation: Reduces vibration and improves machine stability.
Wear Resistance: Engineered for long service life in harsh environments.
OEM Compatibility: Fully compatible with Shantui bulldozer systems.
Technical Specifications
Part Number: 16Y-12-00000
Product Type: Universal Joint Assembly
System: Bulldozer Transmission System
Material: High-strength alloy steel
Function: Torque transfer between shafts
Typical Weight: Approx. 8 kg
Application Models: SD16, SD16L, SD22, SD23
Working Principle
The universal joint assembly transmits rotational motion between two shafts that are not aligned in a straight line. It uses a cross-shaped structure (spider assembly) to allow angular movement while maintaining continuous torque transmission.
This design enables the bulldozer transmission system to operate smoothly even when there are changes in shaft alignment during operation, ensuring stable and efficient performance in complex working conditions.
Installation and Usage Guide
Verify part number (16Y-12-00000) and machine compatibility.
Inspect mating shafts and remove any debris or wear.
Install the universal joint ensuring proper alignment.
Apply grease lubrication to reduce friction.
Secure all bolts and fittings according to specifications.
Test operation under low load before full use.
Maintenance Tips
Regularly lubricate the joint to prevent wear.
Check for abnormal noise or vibration.
Inspect cross shaft and bearings for damage.
Replace worn components to avoid transmission failure.
Applications
The 16Y-12-00000 Universal Joint Assy is widely used in:
Why Choose Qingdao Top Run?
✔ Professional supplier of construction machinery spare parts
✔ OEM and high-quality aftermarket parts available
✔ Strict quality inspection before shipment
✔ Fast global delivery service
✔ Experienced international trade team
We are committed to helping customers solve equipment operation problems and ensuring long-term reliable cooperation.
Frequently Asked Questions (FAQ)
Q1: What is the function of the Universal Joint Assy 16Y-12-00000?
It transmits torque between shafts at different angles, ensuring smooth and flexible power transfer.
Q2: Which machines are compatible with this part?
It is mainly used in Shantui SD16, SD16L, SD22, and SD23 bulldozers.
Q3: How often should the universal joint be maintained?
Regular lubrication and inspection are recommended to ensure long service life.
Q4: What are common signs of failure?
Unusual vibration, noise, or reduced transmission efficiency may indicate wear or damage.
Q5: Do you provide global shipping?
Yes, Qingdao Top Run International Trade Co.,Ltd. supports worldwide B2B export.
